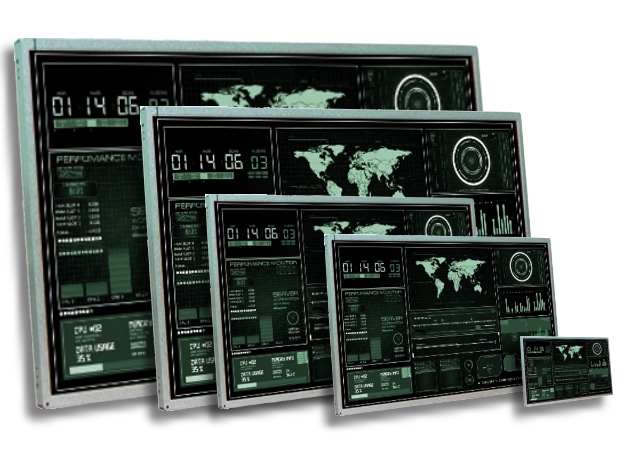

HOT Topic : Mitsubishi Compatible LCD display

: Category: Product-LCD panel

Features

Display size 3.5" to 15", full range series
Display support traditional 4:3 and 16:9 wide format
Brightness design From 400~2000nits
Backlight MTBF design from 50K to 100K hrs
Optional touch parts: 4W RTP, 5W RTP, PCAP, EMI mesh, special lamination, special surface treatment,
Optional for NVIS/sunlight readable solution
Support direct bond for LCD and touch screen integration
Long term support

Size (Diagonal)		Backlight	AGL Model	Key Specifications						Remark: features
Size (Regular)	Size (Wide)	Backlight	AGL Model	Brightness (nit)	Resolution	View angle (Deg)	Contrast ratio	Interface	OP Temp (℃)	Remark: features
3.5" (4:3)		E-LED	VM03B1 V1	1000	320x240	120 / 105	400:1	Digital	70 / -20
			VM03B1 V2	450	320x240	120 / 105	400:1	Digital	70 / -20
			VM03B1 V3	1500	320x240	120 / 105	400:1	Digital	70 / -20
	4.3"(16:9)	E-LED	VM04B1 V1	1000	480x272	140 / 120	500:1	TTL	70 / -20	6 o'clock view direction, 40pin
		E-LED	VM04B1 V0	500	480x272	140 / 120	500:1	TTL	70 / -20	6 o'clock view direction, 40pin
		E-LED	VM04B1 V4	1000	480x272	140 / 120	500:1	TTL	70 / -20	12 o'clock view direction,40pin
		E-LED	VM04B1 VN	500	480x272	140 / 120	500:1	TTL	70 / -20	12 o'clock view direction,40pin
	5.0"(16:9)	E-LED	VM05B1 V1	900	800x480	140 / 120	500:1	TTL	70 / -20	50pin
			VM05B1 V3	1500	800x480	140 / 120	500:1	TTL	70 / -20	50pin
			VM05B1 V4	350	800x480	130 / 110	600:1	TTL	70 / -20	50pin
			VM05B1 V6	1000	800x480	140 / 120	600:1	TTL	70 / -20	40pin
5.0"(4:3)		E-LED	VM05B2 V1	1000	640x480	140 / 120	500:1	Digital	70 / -20	50pin
			VM05B2 V2	500	640x480	140 / 120	500:1	Digital	70 / -20	50pin
			VM05B2 V3	1500	640x480	140 / 120	500:1	Digital	70 / -20	50pin
5.7"(4:3)		E-LED	VM06B2 V1	1200	640x480	140 / 120	400:1	Digital	70 / -20
			VM06B2 V2	550	640x480	140 / 120	400:1	Digital	70 / -20
			VM06B2 V3	1800	640x480	140 / 120	400:1	Digital	70 / -20
			VM06B2 VN	550	640x480	160 / 140	800:1	Digital	85 / -30	Hi-Tni LC
			VM06B2 VA	1200	640x480	160 / 140	800:1	Digital	85 / -30	Hi-Tni LC
			VM06B2 VB	1600	640x480	160 / 140	800:1	Digital	85 / -30	Hi-Tni LC
6.5"(4:3)		E-LED	VM06B4 V1	1200	640x480	160 / 140	600:1	LVDS	85 / -30	Hi-Tni LC
	7"(16:10)	E-LED	VM07B1 V1	1000	800x480	140 / 120	500:1	Digital	85 / -30	Hi-Tni LC
			VM07B1 V12	500	800x480	140 / 120	500:1	Digital	85 / -30	Hi-Tni LC
			VM07B1 V3	1200	800x480	140 / 120	500:1	Digital	85 / -30	Hi-Tni LC
			VM07B1 V4	2000	800x480	140 / 120	500:1	Digital	85 / -30	Hi-Tni LC
			VM07B1 VA	1000	800x480	140 / 120	500:1	LVDS	85 / -30	Hi-Tni LC, w/ Driver
			VM07B1 VB	500	800x480	140 / 120	500:1	LVDS	85 / -30	Hi-Tni LC, w/ Driver
			VM07B2 V3	1000	800x480	140 / 120	500:1	TTL	70 / -20	40pin, square pixel
			VM07B3 V1	1000	800x480	140 / 120	500:1	Digital	70 / -20
			VM07B3 V2	500	800x480	140 / 120	500:1	Digital	70 / -20
			VM07B4 V1	1000	800x480	140 / 120	500:1	Digital	85 / -30	Hi-Tni LC, Square pixel
			VM07B4 V2	500	800x480	140 / 120	500:1	Digital	85 / -30	Hi-Tni LC, Square pixel
			VM07B4 V3	1000	800x480	140 / 120	600:1	1-c LVDS	85 / -30	Hi-Tni LC, Square pixel
			VM07B4 VA	1000	800x480	178 / 178	800:1	LVDS	85 / -30	Hi-Tni LC, Square pixel
			VM07B5 V6	1200	1024x600	150 / 145	500:1	LVDS	70 / -20
			VM07B5 V7	1000	1024x600	150 / 145	700:1	1-c LVDS	70 / -20
			VM07B5 VN	500	1024x600	150 / 145	700:1	1-c LVDS	70 / -20
			VM07B5 VA	1000	1024x600	160 / 160	800:1	LVDS	70 / -20	40-pin LVDS / IPS
			VM07B5 VB	1500	1024x600	160 / 160	800:1	LVDS	70 / -20	40-pin LVDS / IPS
			VM07B6 V5	600	1280x800	178 / 178	800:1	LVDS	70 / -20	MVA
			VM07B6 V6	1300	1280x800	178 / 178	800:1	LVDS	70 / -20	MVA
			VM07B6 V7	500	1280x800	178 / 178	800:1	LVDS	70 / -20	MVA
			VM07B6 V9	800	1280x800	178 / 178	800:1	LVDS	70 / -20	MVA
	8"(16:9)	E-LED	VM08B4 V1	1000	800x480	140 / 120	500:1	Digital	85 / -30	Hi-Tni LC
8"(4:3)		E-LED	VM08B1 V7	500	800x600	140 / 120	500:1	Digital	70 / -20
			VM08B1 V8	1000	800x600	140 / 120	500:1	Digital	70 / -20
			VM08B1 VA	500	800x600	140 / 120	500:1	LVDS	70 / -20	Built-in driver
			VM08B1 VB	1000	800x600	140 / 120	500:1	LVDS	70 / -20	Built-in driver
			VM08B6 V1	700	1024x768	160 / 160	1000:1	LVDS	70 / -20	XGA
			VM08B6 V2	1200	1024x768	160 / 160	1000:1	LVDS	70 / -20	XGA
8.4"(4:3)		E-LED	VM08B2 V2	1000	800x600	160 / 140	600:1	1-c LVDS	85 / -30	Hi-Tni LC
			VM08B2 V3	1600	800x600	160 / 140	600:1	1-c LVDS	85 / -30	Hi-Tni LC
			VM08B3 V1	1000	800x600	150 / 130	600:1	TTL	70 / -20
			VM08B3 V3	450	800x600	150 / 130	600:1	TTL	70 / -20
			VM08B5 V1	1000	800x600	140 / 130	500:1	1-c LVDS	70 / -20
			VM08B5 V2	1500	800x600	140 / 130	500:1	1-c LVDS	70 / -20
			VM08B7 V1	1000	800x600	160 / 140	600:1	1-c LVDS	70 / -20
			VM08BC V0	600	1024x768	176 / 176	1000:1	1-c LVDS	85 / -30	Hi-Tni LC, XGA
			VM08BC V1	1200	1024x768	176 / 176	1000:1	1-c LVDS	85 / -30	Hi-Tni LC, XGA
	9" (16:9)	E-LED	VM09B2 V1	1200	800x480	140 / 110	500:1	TTL	70 / -20	50pin
	9" (16:9)	E-LED	VM09B2 V2	500	800x480	140 / 110	500:1	TTL	70 / -20	50pin
	10.1"(16:9)	E-LED	VM10L1 V0	300	1280x800	170 / 170	800:1	LVDS	50 / -10	WXGA, IPS
			VM10L1 V1	1000	1280x800	170 / 170	800:1	LVDS	50 / -10	WXGA, IPS
			VM10L1 V2	600	1280x800	170 / 170	800:1	LVDS	50 / -10	WXGA, IPS
			VM10B3 V5	1000	1280x800	170 / 170	1300:1	LVDS	60 / -20	high CR
			VM10B3 V6	2000	1280x800	170 / 170	1300:1	LVDS	60 / -20	high CR
			VM10B3 V7	1000	1280x800	170 / 170	800:1	LVDS	65 / -20	WXGA, IPS
			VM10B3 V8	1500	1280x800	170 / 170	800:1	LVDS	65 / -20	WXGA, IPS
			VM10B3 VC	2500	1280x800	170 / 170	1000:1	LVDS	70 / -20	WXGA, IPS
			VM10B3 VD	1500	1280x800	170 / 170	1000:1	LVDS	70 / -20	WXGA, IPS
			VM10B3 VJ	800	1280x800	178 / 178	800:1	LVDS	60 / -20	Light weight
			VM10B3 VK	1200	1280x800	178 / 178	800:1	LVDS	70 / -20	WXGA, IPS
			VM10B3 VL	2000	1280x800	178 / 178	800:1	LVDS	70 / -20	WXGA, IPS
			VM10B8 V1	1000	1024x600	160 / 160	500:1	LVDS	80 / -30	WSVGA, Hi-Tni LC
			VM10B8 VZ	500	1024x600	160 / 160	500:1	LVDS	80 / -30	WSVGA, Hi-Tni LC
			VM10B8 V2	1000	1024x600	160 / 160	500:1	LVDS	50 / 0	WSVGA
			VM10B8 VN	350	1024x600	160 / 160	500:1	LVDS	50 / 0	WSVGA
			VM10BA V5	800	1920x1200	178 / 178	800:1	eDP	60 / -10	WUXGA
			VM10BA V6	1600	1920x1200	178 / 178	800:1	eDP	60 / -10	WUXGA
			VM10BA VN	400	1920x1200	178 / 178	800:1	eDP	60 / -10	WUXGA
			VM10BA V9	1000	1920x1200	178 / 178	900:1	LVDS	50 / -10	WUXGA
			VM10BC V1	1000	1280x720	170 / 170	1000:1	LVDS	85 / -30	WXGA, VA, Hi-Tni LC
			VM10BC V2	2000	1280x720	170 / 170	1000:1	LVDS	85 / -30	WXGA, VA, Hi-Tni LC
10.4"(4:3)		E-LED	VM10B1 V1	650	800x600	140 / 110	500:1	Digital	70 / -20	60pin
			VM10B1 V4	1000	800x600	140 / 110	500:1	Digital	70 / -20	60pin
			VM10B4 V1	1000	800x600	130 / 160	500:1	1-c LVDS	70 / -20
			VM10B4 V2	450	800x600	130 / 160	500:1	1-c LVDS	70 / -20	Driver built-in
			VM10B4 V4	1600	800x600	130 / 160	500:1	1-c LVDS	70 / -20
			VM10B4 V6	500	800x600	130 / 160	500:1	1-c LVDS	70 / -20
			VM10B4 V0	400	800x600	140 / 160	700:1	1-c LVDS	85 / -30	Hi-Tni LC, face mount
			VM10B4 V7	1600	800x600	140 / 160	700:1	1-c LVDS	85 / -30	Hi-Tni LC, face mount
			VM10B4 V8	1200	800x600	140 / 160	700:1	1-c LVDS	85 / -30	Hi-Tni LC, face mount
			VM10B4 V9	800	800x600	140 / 160	700:1	1-c LVDS	85 / -30	Hi-Tni LC, face mount
			VM10B4 VB	1600	800x600	140 / 160	700:1	1-c LVDS	80 / -30	Hi-Tni LC, face mount
			VM10B4 VC	1200	800x600	140 / 160	700:1	1-c LVDS	80 / -30	Hi-Tni LC, face mount
			VM10B4 VE	1200	800x600	130 / 160	700:1	1-c LVDS	80 / -30	Hi-Tni LC, side mount
			VM10B4 VF	1600	800x600	130 / 160	700:1	1-c LVDS	80 / -30	Hi-Tni LC, side mount
			VM10B5 VN	350	800x600	140 / 130	800:1	1-c LVDS	70 / -20
			VM10B5 V1	1100	800x600	140 / 130	800:1	1-c LVDS	70 / -20
			VM10B5 V4	1500	800x600	140 / 130	800:1	1-c LVDS	70 / -20
			VM10B5 V8	2000	800x600	160 / 140	700:1	1-c LVDS	70 / -30	Hi-Tni LC
			VM10B5 V8	1000	800x600	160 / 140	700:1	1-c LVDS	70 / -30	Hi-Tni LC
			VM10B5 V9	400	800x600	160 / 140	700:1	1-c LVDS	70 / -30	Hi-Tni LC
			VM10B5 VA	1000	800x600	130 / 140	400:1	1-c LVDS	70 / -20	12 o'clock view direction
			VM10B5 VU	400	800x600	130 / 140	400:1	1-c LVDS	70 / -20	12 o'clock view direction
			VM10B6 V3	2000	1024x768	178 / 178	3000:1	1-c LVDS	80 / -30	Hi-Tni LC, VA, XGA
			VM10B6 V4	1200	1024x768	178 / 178	3000:1	1-c LVDS	80 / -30	Hi-Tni LC, VA, XGA
			VM10B6 V5	1600	1024x768	178 / 178	3000:1	1-c LVDS	80 / -30	Hi-Tni LC, VA, XGA
			VM10B6 V7	1500	1024x768	178 / 178	3000:1	1-c LVDS	80 / -30	Hi-Tni LC, VA, XGA
			VM10B6 VA	1200	1024x768	176 / 176	1000:1	1-c LVDS	80 / -30	Hi-Tni LC, VA, XGA, 100K MTBF
			VM10B6 VB	1600	1024x768	176 / 176	1000:1	1-c LVDS	80 / -30	Hi-Tni LC, VA, XGA, 100K MTBF
			VM10B6 VN	500	1024x768	176 / 176	1000:1	1-c LVDS	80 / -30	Hi-Tni LC, VA, XGA
			VM10B7 V5	1000	1024x768	150 / 150	900:1	1-c LVDS	70 / -20
			VM10B7 V6	1600	1024x768	150 / 150	900:1	1-c LVDS	70 / -20
			VM10B9 V1	1000	640x480	160 / 140	700:1	1-c LVDS	85 / -30	Hi-Tni LC
			VM10B9 V2	1600	640x480	160 / 140	700:1	1-c LVDS	85 / -30	Hi-Tni LC
			VM10B9 V4	1000	640x480	176 / 176	1500:1	TTL	85 / -30	Hi-Tni LC
			VM10B9 V5	1600	640x480	176 / 176	1500:1	TTL	85 / -30	Hi-Tni LC
12.1"(4:3)		E-LED	VM12B1 V2	1000	800x600	160 / 140	700:1	1-c LVDS	85 / -30	WHi-Tni LC, SVGA
			VM12B1 V3	1600	800x600	160 / 140	700:1	1-c LVDS	85 / -30	WHi-Tni LC, SVGA
			VM12B1 V6	2500	800x600	160 / 140	700:1	1-c LVDS	85 / -30	WHi-Tni LC, SVGA
			VM12B1 V4	1000	800x600	178 / 178	1500:1	1-c LVDS	85 / -30	Hi-Tni LC, SVGA, VA
			VM12B1 V5	1600	800x600	178 / 178	1500:1	1-c LVDS	85 / -30	Hi-Tni LC, SVGA, VA
			VM12B1 VR	450	800x600	178 / 178	1500:1	1-c LVDS	85 / -30	Hi-Tni LC, SVGA, VA
			VM12B1 VA	1000	800x600	160 / 140	700:1	1-c LVDS	70 / -20	Hi-Tni LC, SVGA
			VM12B1 VB	1600	800x600	160 / 140	700:1	1-c LVDS	70 / -20	Hi-Tni LC, SVGA
			VM12B1 VE	1000	800x600	160 / 140	800:1	1-c LVDS	85 / -30	Hi-Tni LC, side mount
			VM12B1 VF	1600	800x600	160 / 140	800:1	1-c LVDS	85 / -30	Hi-Tni LC, side mount
			VM12B1 VG	500	800x600	160 / 140	800:1	1-c LVDS	85 / -30	Hi-Tni LC, side mount
			VM12B2 V2	1000	1024x768	160 / 160	700:1	1-c LVDS	80 / -30	Hi-Tni LC, XGA, face mount
			VM12B2 V3	1600	1024x768	160 / 160	700:1	1-c LVDS	80 / -30	Hi-Tni LC, XGA, face mount
			VM12B4 V1	1200	1024x768	160 / 140	700:1	1-c LVDS	70 / -20	XGA, face mount
			VM12B4 V2	500	1024x768	160 / 140	700:1	1-c LVDS	70 / -20	XGA, face mount
			VM12B4 V4	1500	1024x768	160 / 160	700:1	1-c LVDS	70 / -20	XGA, face mount
			VM12B4 V5	1000	1024x768	160 / 160	700:1	1-c LVDS	70 / -20	XGA, face mount
			VM12B4 V7	1600	1024x768	160 / 160	700:1	1-c LVDS	85 / -30	Hi-Tni LC, XGA, face mount
			VM12B4 V8	1000	1024x768	160 / 160	700:1	1-c LVDS	85 / -30	Hi-Tni LC, XGA, face mount
			VM12B3 VC	1000	1024x768	178 / 178	1000:1	1-c LVDS	70 / -20	XGA, VA, side mount
			VM12B3 VD	1500	1024x768	178 / 178	1000:1	1-c LVDS	70 / -20	XGA, VA, side mount
			VM12B3 VE	400	1024x768	178 / 178	1000:1	1-c LVDS	70 / -20	XGA, VA, side mount
			VM12B3 V7	1000	1024x768	178 / 178	1000:1	1-c LVDS	85 / -30	Hi-Tni LC, XGA, VA, side mount
			VM12B3 V8	1500	1024x768	178 / 178	1000:1	1-c LVDS	85 / -30	Hi-Tni LC, XGA, VA, side mount
			VM12B3 VR	600	1024x768	178 / 178	1000:1	1-c LVDS	85 / -30	Hi-Tni LC, XGA, VA, side mount
			VM12B3 VG	1000	1024x768	170 / 170	900:1	1-c LVDS	80 / -30	Hi-Tni LC, VA, 6.5mm thickness
			VM12B3 VH	1500	1024x768	170 / 170	900:1	1-c LVDS	80 / -30	Hi-Tni LC, VA, 6.5mm thickness
			VM12B3 VJ	650	1024x768	170 / 170	900:1	1-c LVDS	80 / -30	Hi-Tni LC, VA, w/ driver, 8.4mm
			VM12B3 VK	1300	1024x768	170 / 170	900:1	1-c LVDS	80 / -30	Hi-Tni LC, VA, w/ driver, 8.4mm
	12.1" (16:9)	E-LED	VM12B5 V1	1000	1280x800	160 / 160	800:1	1-c LVDS	70 / -20
			VM12B5 V2	1500	1280x800	160 / 160	800:1	1-c LVDS	70 / -20
			VM12B5 V3	1000	1280x800	170 / 170	1000:1	1-c LVDS	70 / -20	VA
			VM12B5 V4	1500	1280x800	170 / 170	1000:1	1-c LVDS	70 / -20	VA
			VM12B5 V6	1000	1280x800	178 / 178	1000:1	1-c LVDS	85 / -30	Hi-Tni LC, MVA
			VM12B5 V7	1500	1280x800	178 / 178	1000:1	1-c LVDS	85 / -30	Hi-Tni LC, MVA
			VM12B5 V8	1000	1280x800	176 / 176	1000:1	1-c LVDS	80 / -30	Hi-Tni LC, VA
15"(4:3)		E-LED	VM15B3 V7	1000	1024x768	160 / 160	800:1	1-c LVDS	70 / -20
			VM15B3 V8	1500	1024x768	160 / 160	800:1	1-c LVDS	70 / -20
			VM15B3 V9	750	1024x768	160 / 160	800:1	1-c LVDS	70 / -20
			VM15B5 V7	1000	1024x768	170 / 160	700:1	1-c LVDS	60 / -10
			VM15B5 V8	1500	1024x768	170 / 160	700:1	1-c LVDS	60 / -10
			VM15B5 V9	2500	1024x768	170 / 160	700:1	1-c LVDS	60 / -10
			VM15B5 VA	1000	1024x768	170 / 160	800:1	eDP	65 / -10	edp interface
			VM15B5 VB	1800	1024x768	170 / 160	800:1	eDP	65 / -10	edp interface
			VM15B6 V5	1000	1024x768	160 / 140	800:1	1-c LVDS	85 / -30	Hi-Tni LC
			VM15B5 V6	2500	1024x768	160 / 140	800:1	1-c LVDS	85 / -30	Hi-Tni LC
			VM15B5 V7	1500	1024x768	160 / 140	800:1	1-c LVDS	85 / -30	Hi-Tni LC
			VM15B6 VC	1000	1024x768	160 / 150	800:1	1-c LVDS	70 / -20	6.3mm LCM thickness
			VM15B6 VD	1200	1024x768	160 / 160	800:1	1-c LVDS	85 / -30	Hi-Tni LC
			VM15B6 VE	2500	1024x768	160 / 160	800:1	1-c LVDS	85 / -30	Hi-Tni LC
			VM15B6 VF	1500	1024x768	160 / 160	800:1	1-c LVDS	85 / -30	Hi-Tni LC
			VM15BA V0	300	1024x768	176 / 176	2000:1	1-c LVDS	70 / -30	VA, high CR
			VM15BA V3	1000	1024x768	176 / 176	2000:1	1-c LVDS	70 / -30	VA, high CR
			VM15BA V4	1500	1024x768	176 / 176	2000:1	1-c LVDS	70 / -30	VA, high CR
			VM15BA VN	500	1024*768	176 / 176	2500:1	1-c LVDS	85 / -30	Hi-Tni LC, VA
			VM15BA V6	1000	1024*768	176 / 176	2500:1	1-c LVDS	85 / -30	Hi-Tni LC, VA
			VM15BA V7	1500	1024*768	176 / 176	2500:1	1-c LVDS	85 / -30	Hi-Tni LC, VA
			VM15BA VA	1000	1024*768	176 / 176	2500:1	1-c LVDS	70 / -30	Hi-Tni LC, VA, 5/8.1 mm thickness
			VM15BA VB	1500	1024*768	176 / 176	2500:1	1-c LVDS	70 / -30	Hi-Tni LC, VA, 5/8.1 mm thickness
			VM15BA VC	1000	1024*768	178 / 178	1000:1	1-c LVDS	85 / -30	Hi-Tni LC, VA
			VM15BA VD	1500	1024*768	178 / 178	1000:1	1-c LVDS	85 / -30	Hi-Tni LC, VA
			VM15BA VE	2500	1024*768	178 / 178	1000:1	1-c LVDS	85 / -30	Hi-Tni LC, VA
			VM15BA VG	500	1024*768	178 / 178	1000:1	1-c LVDS	85 / -30	Hi-Tni LC, VA

More information

Industrial Display

Modify date is not enabled in Article Configuration

24/7 operation , long term operation , reliability , sunlight readable , Industrial LCD , solutions , High brightness

TFT LCD displays are widely used in general industrial fields, some typical applications including: ...

Outdoor display

Modify date is not enabled in Article Configuration

wide operation temperature , direct sunlight , 24/7 operation , long term operation , reliability , sunlight readable , Industrial LCD , solutions , Outdoor LCD High brightness

The colorful LCD with rich color performance is good to replace various traditional display functi...

Mobility display solution

Modify date is not enabled in Article Configuration

thin thickness LCD module , mobility lcd , all weather , 24/7 operation , reliability , sunlight readable , solutions , Outdoor LCD High brightness

All weather Mobility display solution Beside consumer-grade mobile phones and tablets, LCD displ...

Touch panel solutions

Modify date is not enabled in Article Configuration

infrared touch , Projected Capacitive , PCAP touch , IR touch , touch panel , solutions , Interactive monitor High brightness

For LCD-related display applications, touch panel is like a pair of good brothers. In many cases, to...

Control kits

Modify date is not enabled in Article Configuration

RS232 , edp , RGB parallel , mipi , signal convert , light sensor , LVDS , DP , DVI , VGA , AD board , LED driver board , solutions , Control kits

LCDs is just like a large river, all different sizes and design have its related different applicati...

Special Module / backlight / optical design

Modify date is not enabled in Article Configuration

spectrum , view angle , anti-reflection , anti-glare , optical design , NVIS , LCD modue , LCM , backlight , solutions

Although this is not a common application, but for some special projects, system engineers do need s...

Product inquiry

long term availability , Military lcd , NVIS LCD , wide operation temperature , long term operation , Industrial LCD , agl lcd
