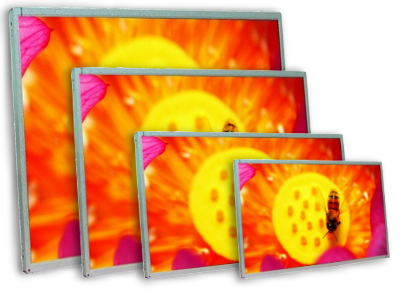

13-19 inches LCD panel series

: Category: Product-vm-list

Features

13"~19" High brightness LCD panel series with following features

300 nits~2500 nits full range brightness design
Extra wide operation temperature
100K hrs backlight MTBF designable
Flexible module thickness design
Easy cusotmization engineering capacity
TTL/edp/mipi/LVDS interface
Well control kits for easy system integration

Applications

Indoor / Outdoor industrial display applications
KIOSK and HMI interface
Automotive and transportation
Gaming
Small digital signage display
General industrial use
Military, Yachting or other special applications

Size	AGL code	Resolution	Brightness	C/R	V. Angle	OP temp.	I/O
13.3" FHD	VM13B3 V0	1920*1080	400nits	800:1	178/178	-20/70C	LVDS
13.3" FHD	VM13B3 V2	1920*1080	1000nits	800:1	178/178	-20/70C	LVDS
13.3" FHD	VM13B3 V3	1920*1080	1500nits	800:1	178/178	-20/70C	LVDS
13.3" FHD	VM13B3 V5	1920*1080	750nits	800:1	170/170	-10/50C	eDP
13.3" FHD	VM13B3 V6	1920*1080	1500nits	800:1	170/170	-10/50C	eDP
13.3" FHD	VM13B4 V1	1920*1080	800nits	800:1	170/170	-10/50C	eDP
13.3" FHD	VM13B4 V2	1920*1080	1500nits	800:1	170/170	-10/50C	eDP
13.3" FHD	VM13B4 VA	1920*1080	350nits	800:1	170/170	-10/50C	eDP
13.3" FHD	VM13B4 VB	1920*1080	1000nits	800:1	170/170	-10/50C	eDP
14" FHD	VM14B2 V3	1920*1080	1000nits	1000:1	178/178	-10/50C	eDP
14" Bar	VM14S1 V1	1280*398	500nits	1000:1	170/160	-10/50C	LVDS
14" Bar	VM14S1 V2	1280*398	1000nits	1000:1	170/160	-10/50C	LVDS
14" Bar	VM14S1 V3	1280*398	2000nits	1000:1	170/160	-10/50C	LVDS
15" XGA	VM15B3 V0	1024*768	300nits	800:1	160/160	-20/70C	LVDS
15" XGA	VM15B3 V7	1024*768	1000nits	800:1	160/160	-20/70C	LVDS
15" XGA	VM15B3 V8	1024*768	1500nits	800:1	160/160	-20/70C	LVDS
15" XGA	VM15B3 V9	1024*768	750nits	800:1	160/160	-20/70C	LVDS
15" XGA	VM15B3 VA	1024*768	1000nits	800:1	160/160	-20/70C	LVDS
15" XGA	VM15B3 VB	1024*768	1500nits	800:1	160/160	-20/70C	LVDS
15" XGA	VM15B5 VA	1024*768	1000nits	800:1	170/160	-10/65C	eDP
15" XGA	VM15B5 VB	1024*768	1800nits	800:1	170/160	-10/65C	eDP
15" XGA	VM15B6 V5	1024*768	1200nits	800:1	160/140	-30/85C	LVDS
15" XGA	VM15B6 V6	1024*768	2500nits	800:1	160/140	-30/85C	LVDS
15" XGA	VM15B6 V7	1024*768	1800nits	800:1	160/140	-30/85C	LVDS
15" XGA	VM15B6 VD	1024*768	1200nits	800:1	160/160	-30/80C	LVDS
15" XGA	VM15B6 VE	1024*768	2500nits	800:1	160/160	-30/80C	LVDS
15" XGA	VM15B6 VF	1024*768	1500nits	800:1	160/160	-30/80C	LVDS
15" XGA	VM15B6 VC	1024*768	1000nits	800:1	160/140	-30/80C	LVDS
15" XGA	VM15BA V0	1024*768	300nits	2000:1	176/176	-30/70C	LVDS
15" XGA	VM15BA V3	1024*768	1000nits	2000:1	176/176	-30/70C	LVDS
15" XGA	VM15BA V4	1024*768	1500nits	2000:1	176/176	-30/70C	LVDS
15" XGA	VM15BA VN	1024*768	500nits	2500:1	176/176	-30/85C	LVDS
15" XGA	VM15BA V6	1024*768	1000nits	2500:1	176/176	-30/85C	LVDS
15" XGA	VM15BA V7	1024*768	1800nits	2500:1	176/176	-30/85C	LVDS
15" XGA	VM15BA V8	1024*768	2200nits	2500:1	176/176	-30/85C	LVDS
15" XGA	VM15BA VA	1024*768	1000nits	2500:1	176/176	-30/70C	LVDS
15" XGA	VM15BA VB	1024*768	500nits	2500:1	176/176	-30/70C	LVDS
15" XGA	VM15BA VC	1024*768	1000nits	1000:1	178/178	-30/85C	LVDS
15" XGA	VM15BA VD	1024*768	1500nits	1000:1	178/178	-30/85C	LVDS
15" XGA	VM15BA VE	1024*768	2500nits	1000:1	178/178	-30/85C	LVDS
15" XGA	VM15BA VG	1024*768	500nits	1000:1	178/178	-30/85C	LVDS
15" UXGA	VM15BE V0	1600*1200	1000nits	1000:1	160/160	-30/70C	LVDS
15.4"WXGA	VM15B8 V0	1280*800	450nits	700:1	160/140	-30/80C	LVDS
15.4"WXGA	VM15B8 V1	1280*800	1200nits	700:1	160/140	-30/80C	LVDS
15.4"WXGA	VM15B8 V2	1280*800	1600nits	700:1	160/140	-30/80C	LVDS
15.4"WXGA	VM15B8 V3	1280*800	2000nits	700:1	160/140	-30/80C	LVDS
15.6"WXGA	VM15B4 VN	1366*768	400nits	800:1	170/160	-30/85C	LVDS
15.6"WXGA	VM15B4 V1	1366*768	1000nits	800:1	170/160	-30/85C	LVDS
15.6"WXGA	VM15B4 V2	1366*768	1600nits	800:1	170/160	-30/85C	LVDS
15.6"WXGA	VM15B4 V3	1366*768	500nits	800:1	170/160	-30/85C	LVDS
15.6"WXGA	VM15B4 V4	1366*768	2500nits	800:1	170/160	-30/85C	LVDS
15.6"WXGA	VM15B4 V0	1366*768	300nits	500:1	160/160	-20/70C	LVDS
15.6"WXGA	VM15B4 V7	1366*768	1000nits	500:1	160/160	-20/70C	LVDS
15.6"WXGA	VM15B4 V8	1366*768	1500nits	500:1	160/160	-20/70C	LVDS
15.6"WXGA	VM15B4 VA	1366*768	2500nits	500:1	160/160	-20/70C	LVDS
15.6"WXGA	VM15B4 VB	1366*768	500nits	500:1	160/160	-20/70C	LVDS
15.6" FHD	VM15B9 V2	1920*1080	1000nits	700:1	170/170	0/50C	eDP
15.6" FHD	VM15B9 V3	1920*1080	500nits	700:1	170/170	0/50C	eDP
15.6" FHD	VM15B9 V0	1920*1080	450nits	1000:1	178/178	0/60C	eDP
15.6" FHD	VM15B9 V7	1920*1080	1000nits	1000:1	178/178	0/60C	eDP
15.6" FHD	VM15B9 V8	1920*1080	1600nits	1000:1	178/178	0/60C	eDP
15.6" FHD	VM15B9 VD	1920*1080	1000nits	1000:1	178/178	-20/70C	LVDS
15.6" FHD	VM15B9 VE	1920*1080	1800nits	1000:1	178/178	-20/70C	LVDS
15.6" FHD	VM15B9 VN	1920*1080	450nits	1000:1	178/178	-30/85C	LVDS
15.6" FHD	VM15B9 VH	1920*1080	1000nits	1000:1	178/178	-30/85C	LVDS
15.6" FHD	VM15B9 VI	1920*1080	1600nits	1000:1	178/178	-30/85C	LVDS
15.6" FHD	VM15B9 VJ	1920*1080	600nits	1000:1	178/178	-30/85C	LVDS
15.6" FHD	VM15B9 VK	1920*1080	2000nits	1000:1	178/178	-30/85C	LVDS
15.6" 4K	VM15Q1 V1	3840*2160	1000nits	1500:1	170/170	0/50C	eDP
15.6" 4K	VM15Q1 V2	3840*2160	1500nits	1500:1	170/170	0/50C	eDP
17" SXGA	VM17B1 V6	1280*1024	750nits	1000:1	170/160	-10/50C	LVDS
17" SXGA	VM17B1 V7	1280*1024	1500nits	1000:1	170/160	-10/50C	LVDS
17" SXGA	VM17B1 V8	1280*1024	1000nits	1000:1	170/160	-10/50C	LVDS
17" SXGA	VM17B1 V9	1280*1024	400nits	1000:1	170/160	-10/50C	LVDS
17" SXGA	VM17B1 VA	1280*1024	2000nits	1000:1	170/160	-10/50C	LVDS
17" SXGA	VM17B4 V1	1280*1024	700nits	800:1	160/140	-30/85C	LVDS
17" SXGA	VM17B4 V2	1280*1024	850nits	800:1	160/140	-30/85C	LVDS
17" SXGA	VM17B4 V3	1280*1024	1500nits	800:1	160/140	-30/85C	LVDS
17" SXGA	VM17B4 V4	1280*1024	1000nits	800:1	160/140	-30/85C	LVDS
17" SXGA	VM17BA V2	1280*1024	1000nits	1000:1	178/178	-10/70C	LVDS
17" SXGA	VM17BA V6	1280*1024	1000nits	1000:1	178/178	-10/60C	LVDS
17" SXGA	VM17BA V7	1280*1024	1600nits	1000:1	178/178	-10/60C	LVDS
17" SXGA	VM17BA V8	1280*1024	2000nits	1000:1	178/178	-10/60C	LVDS
17.3" FHD	VM17B5 V1	1920*1080	1000nits	600:1	160/140	-10/70C	LVDS
17.3" FHD	VM17B5 V2	1920*1080	1500nits	600:1	160/140	-10/70C	LVDS
17.3" FHD	VM17B5 V3	1920*1080	2000nits	600:1	160/140	-10/70C	LVDS
17.3" FHD	VM17B6 V4	1920*1080	500nits	700:1	178/178	-10/50C	eDP
17.3" FHD	VM17B6 V5	1920*1080	1000nits	700:1	178/178	-10/50C	eDP
17.3" FHD	VM17B6 V6	1920*1080	1500nits	700:1	178/178	-10/50C	eDP
18.5"WXGA	VM19B1 V1	1366*768	700nits	1000:1	178/178	0/50C	LVDS
18.5"WXGA	VM19B1 V2	1366*768	1500nits	1000:1	178/178	0/50C	LVDS
18.5"WXGA	VM19B1 V3	1366*768	1000nits	1000:1	178/178	0/50C	LVDS
18.5" FHD	VM19B7 V0	1366*768	350nits	1000:1	178/178	-20/70C	LVDS
18.5"FHD	VM19B7 V4	1920*1080	350nits	1000:1	178/178	-20/70C	LVDS
18.5"FHD	VM19B7 V5	1920*1080	1000nits	1000:1	178/178	-20/70C	LVDS
18.5"FHD	VM19B7 V6	1920*1080	1500nits	1000:1	178/178	-20/70C	LVDS
18.5" FHD	VM19B7 VN	1366*768	350nits	1000:1	178/178	-30/85C	LVDS
18.5" FHD	VM19B7 V1	1366*768	750nits	1000:1	178/178	-30/85C	LVDS
18.5" FHD	VM19B7 V2	1366*768	1000nits	1000:1	178/178	-30/85C	LVDS
18.5" FHD	VM19B7 V3	1366*768	1500nits	1000:1	178/178	-30/85C	LVDS
19" SXGA	VM19B3 V2	1280*1024	2000nits	1000:1	170/160	-10/60C	LVDS
19" SXGA	VM19B3 V3	1280*1024	1500nits	1000:1	170/160	-10/60C	LVDS
19" SXGA	VM19B3 V4	1280*1024	1000nits	1000:1	170/160	-10/60C	LVDS
19" SXGA	VM19B3 V5	1280*1024	450nits	1000:1	170/160	-10/60C	LVDS
19" SXGA	VM19B3 V6	1280*1024	700nits	1000:1	170/160	-10/60C	LVDS
19" SXGA	VM19B6 V1	1280*1024	1000nits	1000:1	170/160	-20/60C	LVDS
19" SXGA	VM19B6 V2	1280*1024	500nits	1000:1	170/160	-20/60C	LVDS
19" SXGA	VM19B6 V3	1280*1024	2000nits	1000:1	170/160	-20/60C	LVDS
19" SXGA	VM19B8 V1	1280*1024	900nits	1000:1	170/160	-30/85C	LVDS
19" SXGA	VM19B8 V2	1280*1024	1200nits	1000:1	170/160	-30/85C	LVDS
19" SXGA	VM19B8 V3	1280*1024	1600nits	1000:1	170/160	-30/85C	LVDS
19" SXGA	VM19BA V4	1280*1024	500nits	1000:1	178/178	-10/50C	LVDS
19" SXGA	VM19BA V5	1280*1024	1000nits	1000:1	178/178	-10/50C	LVDS
19" SXGA	VM19BA V6	1280*1024	1600nits	1000:1	178/178	-10/50C	LVDS
19" SXGA	VM19BA VA	1280*1024	650nits	1000:1	178/178	-10/60C	LVDS
19" SXGA	VM19BA VB	1280*1024	1000nits	1000:1	178/178	-10/60C	LVDS
