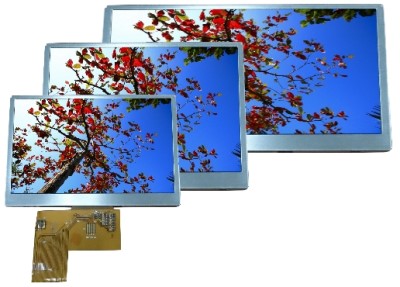

AGL 2"~10" inches high brightness LCD panel series
Major features:
Applications
Major features:
- From QVGA to FHD, full range resolution solutions
- Flexible backlight design
- RGB / TTL / mipi / LVDS interface
- Wide operation temperature range
- Sunlight readable brightness
Applications
- Handheld device, outdoor or indoor use
- Embedded system display
- Automotive or bike related applications
- Hight brightness HUD applications
- Instrument display with extra long life time
- Human machine interface (HMI)
Size (Diagonal) | Backlight | AGL Model | Key Specifications | Remark: Features | ||||||
Size (Regular) | Size (Wide) | Brightness (nit) | Resolution | View angle (Deg) | Contrast ratio | Interface | OP Temp (℃) | |||
2.8" (4:3) | E-LED | VM02B8 V0 | 250 | 240x320 | 160 / 160 | 800:1 | MCU | 70 / -20 | ||
VM02B8 V1 | 1000 | 240x320 | 160 / 160 | 800:1 | MCU | 70 / -20 | ||||
3.5" (4:3) | E-LED | VM03B1 V1 | 1000 | 320x240 | 120 / 105 | 400:1 | Digital | 70 / -20 | ||
VM03B1 V2 | 450 | 320x240 | 120 / 105 | 400:1 | Digital | 70 / -20 | ||||
VM03B1 V3 | 1500 | 320x240 | 120 / 105 | 400:1 | Digital | 70 / -20 | ||||
4.3"(16:9) | E-LED | VM04B1 V1 | 1000 | 480x272 | 140 / 120 | 500:1 | RGB | 70 / -20 | 6 o'clock view direction, 40pin | |
VM04B1 V0 | 500 | 480x272 | 140 / 120 | 500:1 | RGB | 70 / -20 | 6 o'clock view direction, 40pin | |||
E-LED | VM04B1 V4 | 1000 | 480x272 | 140 / 120 | 500:1 | RGB | 70 / -20 | 12 o'clock view direction,40pin | ||
VM04B1 VN | 500 | 480x272 | 140 / 120 | 500:1 | RGB | 70 / -20 | 12 o'clock view direction,40pin | |||
E-LED | VM04B1 VB | 1000 | 480x272 | 170 / 170 | 800:1 | RGB | 80 / -30 | Hi-Tni LC, IPS | ||
5.0"(16:9) | E-LED | VM05B1 V1 | 900 | 800x480 | 140 / 120 | 500:1 | TTL | 70 / -20 | 50pin | |
VM05B1 V3 | 1500 | 800x480 | 140 / 120 | 500:1 | TTL | 70 / -20 | 50pin | |||
VM05B1 V4 | 350 | 800x480 | 130 / 110 | 600:1 | TTL | 70 / -20 | 50pin | |||
VM05B1 V6 | 1000 | 800x480 | 140 / 120 | 600:1 | RGB | 70 / -20 | 40pin | |||
VM05B1 VC | 1000 | 800x480 | 160 / 160 | 1000:1 | RGB | 80 / -30 | Hi-Tni LC, IPS | |||
VM05B1 VD | 1000 | 800x480 | 160 / 160 | 1000:1 | LVDS | 80 / -30 | Hi-Tni LC, IPS | |||
5.0"(4:3) | E-LED | VM05B2 V1 | 1000 | 640x480 | 140 / 120 | 500:1 | Digital | 70 / -20 | 50pin | |
VM05B2 V2 | 500 | 640x480 | 140 / 120 | 500:1 | Digital | 70 / -20 | 50pin | |||
VM05B2 V3 | 1500 | 640x480 | 140 / 120 | 500:1 | Digital | 70 / -20 | 50pin | |||
5.0" (9:16) | E-LED | VM05B4 VN / V6 | 480 / (1000) | 720x1280 | 176 / 176 | 800:1 | mipi | 70 / -20 | 2022 | |
5.6"(4:3) | E-LED | VM06B1 V1 | 1000 | 640x480 | 140 / 120 | 500:1 | Digital | 70 / -20 | 50pin | |
VM06B1 V2 | 450 | 640x480 | 140 / 120 | 500:1 | Digital | 70 / -20 | 50pin | |||
5.7"(4:3) | E-LED | VM06B2 V1 | 1200 | 640x480 | 140 / 120 | 400:1 | Digital | 70 / -20 | ||
VM06B2 V2 | 550 | 640x480 | 140 / 120 | 400:1 | Digital | 70 / -20 | ||||
VM06B2 V3 | 1800 | 640x480 | 140 / 120 | 400:1 | Digital | 70 / -20 | ||||
VM06B2 VN | 550 | 640x480 | 160 / 140 | 800:1 | Digital | 85 / -30 | Hi-Tni LC | |||
VM06B2 VA | 1200 | 640x480 | 160 / 140 | 800:1 | Digital | 85 / -30 | Hi-Tni LC | |||
VM06B2 VB | 1600 | 640x480 | 160 / 140 | 800:1 | Digital | 85 / -30 | Hi-Tni LC | |||
5.7"(9:16) | E-LED | VM05B7 V0 | 450 | 720x1280 | 170 / 170 | 900:1 | mipi | 70 / -20 | ||
VM05B7 V1 | 1000 | 720x1280 | 170 / 170 | 900:1 | mipi | 70 / -20 | ||||
6.5"(4:3) | E-LED | VM06B4 V1 | 1200 | 640x480 | 160 / 140 | 600:1 | LVDS | 85 / -30 | Hi-Tni LC | |
6.5" (16:9) | E-LED | VM06B5 V0 | 400 | 800x480 | 140 / 120 | 500:1 | TTL | 70 / -20 | 50pin | |
VM06B5 V1 | 1000 | 800x480 | 140 / 120 | 500:1 | TTL | 70 / -20 | 50pin | |||
VM06B5 V2 | 500 | 800x480 | 140 / 120 | 500:1 | TTL | 70 / -20 | 50pin | |||
VM06B5 V3 | 1500 | 800x480 | 140 / 120 | 500:1 | TTL | 70 / -20 | 50pin | |||
7"(16:10) | E-LED | VM07B1 V1 | 1000 | 800x480 | 140 / 120 | 500:1 | Digital | 85 / -30 | Hi-Tni LC | |
VM07B1 V12 | 500 | 800x480 | 140 / 120 | 500:1 | Digital | 85 / -30 | Hi-Tni LC | |||
VM07B1 V3 | 1200 | 800x480 | 140 / 120 | 500:1 | Digital | 85 / -30 | Hi-Tni LC | |||
VM07B1 V4 | 2000 | 800x480 | 140 / 120 | 500:1 | Digital | 85 / -30 | Hi-Tni LC | |||
VM07B1 VA | 1000 | 800x480 | 140 / 120 | 500:1 | LVDS | 85 / -30 | Hi-Tni LC, w/ Driver | |||
VM07B1 VB | 500 | 800x480 | 140 / 120 | 500:1 | LVDS | 85 / -30 | Hi-Tni LC, w/ Driver | |||
VM07B2 V3 | 1000 | 800x480 | 140 / 120 | 500:1 | TTL | 70 / -20 | 40pin, square pixel | |||
VM07B3 V1 | 1000 | 800x480 | 140 / 120 | 500:1 | Digital | 70 / -20 | ||||
VM07B3 V2 | 500 | 800x480 | 140 / 120 | 500:1 | Digital | 70 / -20 | ||||
VM07B4 V1 | 1000 | 800x480 | 140 / 120 | 500:1 | Digital | 85 / -30 | Hi-Tni LC, Square pixel | |||
VM07B4 V2 | 500 | 800x480 | 140 / 120 | 500:1 | Digital | 85 / -30 | Hi-Tni LC, Square pixel | |||
VM07B4 V3 | 1000 | 800x480 | 140 / 120 | 600:1 | 1-c LVDS | 85 / -30 | Hi-Tni LC, Square pixel | |||
VM07B4 VA | 1000 | 800x480 | 178 / 178 | 800:1 | LVDS | 85 / -30 | Hi-Tni LC, Square pixel | |||
VM07B5 VA | 1000 | 1024x600 | 160 / 160 | 800:1 | LVDS | 70 / -20 | IPS | |||
VM07B5 VB | 1500 | 1024x600 | 160 / 160 | 800:1 | LVDS | 70 / -20 | IPS | |||
VM07B5 VC | 1000 | 1024x600 | 170 / 170 | 800:1 | LVDS | 70 / -20 | IPS | |||
VM07B5 V5 | 750 | 1024x600 | 150 / 145 | 500:1 | LVDS | 70 / -20 | ||||
VM07B5 V6 | 1200 | 1024x600 | 150 / 145 | 500:1 | LVDS | 70 / -20 | ||||
VM07B5 V7 | 1000 | 1024x600 | 150 / 145 | 700:1 | 1-c LVDS | 70 / -20 | ||||
VM07B5 VN | 500 | 1024x600 | 150 / 145 | 700:1 | 1-c LVDS | 70 / -20 | ||||
VM07B5 VA | 1000 | 1024x600 | 160 / 160 | 800:1 | LVDS | 70 / -20 | 40-pin LVDS / IPS | |||
VM07B5 VB | 1500 | 1024x600 | 160 / 160 | 800:1 | LVDS | 70 / -20 | 40-pin LVDS / IPS | |||
VM07B6 V5 | 600 | 1280x800 | 178 / 178 | 800:1 | LVDS | 70 / -20 | MVA | |||
VM07B6 V2 | 700 | 1280x800 | 170 / 170 | 700:1 | 1-c LVDS | 50 / -10 | WXGA, Wide VA, Tablet | |||
VM07B6 V6 | 1300 | 1280x800 | 178 / 178 | 800:1 | LVDS | 70 / -20 | MVA | |||
VM07B6 V7 | 500 | 1280x800 | 178 / 178 | 800:1 | LVDS | 70 / -20 | MVA | |||
VM07B6 V9 | 800 | 1280x800 | 178 / 178 | 800:1 | LVDS | 70 / -20 | MVA | |||
8"(16:9) | E-LED | VM08B4 V1 | 1600 | 800x480 | 140 / 120 | 500:1 | LVDS | 85 / -30 | Hi-Tni LC | |
VM08B4 V2 | 2000 | 800x480 | 140 / 120 | 500:1 | LVDS | 85 / -30 | Hi-Tni LC | |||
VM08B4 V3 | 1000 | 800x480 | 140 / 120 | 500:1 | LVDS | 85 / -30 | Hi-Tni LC | |||
VM08B4 V4 | 500 | 800x480 | 140 / 120 | 500:1 | LVDS | 85 / -30 | Hi-Tni LC | |||
VM08B4 VA | 1600 | 800x480 | 140 / 120 | 500:1 | TTL | 85 / -30 | Hi-Tni LC | |||
VM08B4 VB | 2000 | 800x480 | 140 / 120 | 500:1 | TTL | 85 / -30 | Hi-Tni LC | |||
VM08B4 VC | 1000 | 800x480 | 140 / 120 | 500:1 | TTL | 85 / -30 | Hi-Tni LC | |||
VM08B4 VD | 500 | 800x480 | 140 / 120 | 500:1 | TTL | 85 / -30 | Hi-Tni LC | |||
8"(16:9) | E-LED | VM08B8 V2 | 1000 | 1024x600 | 170 / 170 | 800:1 | LVDS | 70 / -20 | 40pin FPC type | |
8" (10:16) | E-LED | VM08BA V0 | 460 | 1200x1920 | 170 / 170 | 900:1 | mipi | 60 / -10 | Portrait mode, IPS | |
VM08BA V1 | 800 | 1200x1920 | 170 / 170 | 900:1 | mipi | 60 / -10 | Portrait mode, IPS | |||
VM08BA V2 | 1500 | 1200x1920 | 170 / 170 | 900:1 | mipi | 60 / -10 | Portrait mode, IPS | |||
8"(4:3) | E-LED | VM08B1 V7 | 500 | 800x600 | 140 / 120 | 500:1 | Digital | 70 / -20 | ||
VM08B1 V8 | 1000 | 800x600 | 140 / 120 | 500:1 | Digital | 70 / -20 | ||||
VM08B1 VA | 500 | 800x600 | 140 / 120 | 500:1 | LVDS | 70 / -20 | Built-in driver | |||
VM08B1 VB | 1000 | 800x600 | 140 / 120 | 500:1 | LVDS | 70 / -20 | Built-in driver | |||
VM08B6 V1 | 700 | 1024x768 | 160 / 160 | 1000:1 | LVDS | 70 / -20 | XGA | |||
VM08B6 V2 | 1200 | 1024x768 | 160 / 160 | 1000:1 | LVDS | 70 / -20 | XGA | |||
VM08B6 VN | 500 | 1024x768 | 170 / 170 | 1200:1 | LVDS | 70 / -20 | XGA | |||
VM08B6 V6 | 1000 | 1024x768 | 170 / 170 | 1200:1 | LVDS | 70 / -20 | XGA | |||
8.4"(4:3) | E-LED | VM08B2 V2 | 1000 | 800x600 | 160 / 140 | 600:1 | 1-c LVDS | 85 / -30 | Hi-Tni LC | |
VM08B2 V3 | 1600 | 800x600 | 160 / 140 | 600:1 | 1-c LVDS | 85 / -30 | Hi-Tni LC | |||
VM08B3 V1 | 1000 | 800x600 | 150 / 130 | 600:1 | TTL | 70 / -20 | ||||
VM08B3 V3 | 450 | 800x600 | 150 / 130 | 600:1 | TTL | 70 / -20 | ||||
VM08B5 V1 | 1000 | 800x600 | 140 / 130 | 500:1 | 1-c LVDS | 70 / -20 | ||||
VM08B5 V2 | 1500 | 800x600 | 140 / 130 | 500:1 | 1-c LVDS | 70 / -20 | ||||
VM08B7 V1 | 1000 | 800x600 | 160 / 140 | 600:1 | 1-c LVDS | 70 / -20 | ||||
VM08BC V0 | 600 | 1024x768 | 176 / 176 | 1000:1 | 1-c LVDS | 85 / -30 | Hi-Tni LC, XGA | |||
VM08BC V1 | 1200 | 1024x768 | 176 / 176 | 1000:1 | 1-c LVDS | 85 / -30 | Hi-Tni LC, XGA | |||
VM08BC V2 | 1600 | 1024x768 | 176 / 176 | 1000:1 | 1-c LVDS | 85 / -30 | Hi-Tni LC, XGA | |||
9" (16:9) | E-LED | VM09B2 V1 | 1200 | 800x480 | 140 / 110 | 500:1 | TTL | 70 / -20 | 50pin | |
VM09B2 V2 | 500 | 800x480 | 140 / 110 | 500:1 | TTL | 70 / -20 | 50pin |
