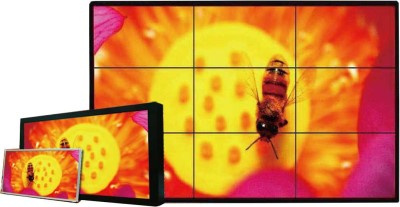

20-75 inches LCD panel series

: Category: Product-vm-list

Features

AGL 21"~75" inches LCD panel with following features:

250 nits~4500 nits full range brightness design
Wide operation temperature
100K hrs backlight MTBF designable
Flexible module thickness design
Easy cusotmization engineering capacity
up to 4K resolution
Complete control kits for easy system integration

Applications

Indoor / Outdoor digital display applications
General industrial display
Digital signage display
Public information display
TV wall applications

Size	AGL code	Resolution	Brightness	C/R	V. Angle	OP temp.	I/O
21.5" FHD	VM22B2 V3	1920*1080	700nits	3000:1	178/178	-10/50C	LVDS
21.5" FHD	VM22B2 V4	1920*1080	1000nits	3000:1	178/178	-10/50C	LVDS
21.5" FHD	VM22B2 V5	1920*1080	1500nits	3000:1	178/178	-10/50C	LVDS
21.5" FHD	VM22B2 V6	1920*1080	500nits	3000:1	178/178	-10/50C	LVDS
21.5" FHD	VM22B2 VC	1920*1080	1000nits	1000:1	178/178	-10/50C	LVDS
21.5" FHD	VM22B2 VD	1920*1080	1500nits	1000:1	178/178	-10/50C	LVDS
21.5" FHD	VM22B2 VE	1920*1080	500nits	1000:1	178/178	-10/50C	LVDS
21.5" FHD	VM22B3 V4	1920*1080	1200nits	1000:1	170/160	-10/50C	LVDS
21.5" FHD	VM22B3 V5	1920*1080	600nits	1000:1	170/160	-10/50C	LVDS
21.5" FHD	VM22B3 V6	1920*1080	420nits	1000:1	170/160	-10/50C	LVDS
21.5" FHD	VM22B3 VA	1920*1080	2500nits	1000:1	170/160	-10/50C	LVDS
21.5" FHD	VM22B3 VB	1920*1080	1500nits	1000:1	170/160	-10/50C	LVDS
21.5" FHD	VM22B6 V1	1920*1080	1000nits	1000:1	178/178	-30/80C	LVDS
21.5" FHD	VM22B6 V2	1920*1080	1500nits	1000:1	178/178	-30/80C	LVDS
21.5" FHD	VM22B6 V3	1920*1080	2500nits	1000:1	178/178	-30/80C	LVDS
21.5" FHD	VM22B6 V4	1920*1080	500nits	1000:1	178/178	-30/80C	LVDS
21.5" FHD	VM22B7 VA	1920*1080	2000nits	1000:1	178/178	-10/60C	LVDS
21.5" FHD	VM22B7 VB	1920*1080	500nits	1000:1	178/178	-10/60C	LVDS
21.5" FHD	VM22B7 VC	1920*1080	1600nits	1000:1	178/178	-10/60C	LVDS
21.5" FHD	VM22B7 VE	1920*1080	1000nits	1000:1	178/178	-10/60C	LVDS
23.8" FHD	VM24B3 V1	1920*1080	1000nits	3000:1	178/178	-10/50C	LVDS
23.8" FHD	VM24B3 V2	1920*1080	500nits	3000:1	178/178	-10/50C	LVDS
23.8" FHD	VM24B3 V3	1920*1080	1500nits	3000:1	178/178	-10/50C	LVDS
23.8" FHD	VM24B3 V4	1920*1080	3000nits	3000:1	178/178	-10/50C	LVDS
23.8" FHD	VM24B3 V6	1920*1080	1000nits	1000:1	178/178	-10/50C	LVDS
23.8" FHD	VM24B3 V7	1920*1080	500nits	1000:1	178/178	-10/50C	LVDS
23.8" FHD	VM24B3 V8	1920*1080	1500nits	1000:1	178/178	-10/50C	LVDS
23.8" FHD	VM24B3 VG	1920*1080	1200nits	1000:1	178/178	-20/80C	LVDS
23.8" FHD	VM24B3 VH	1920*1080	1600nits	1000:1	178/178	-20/80C	LVDS
23.8" FHD	VM24B3 VI	1920*1080	2500nits	1000:1	178/178	-20/80C	LVDS
23.8" 4K	VM24Q3 VN	3840*2160	550nits	1000:1	178/178	-10/50C	eDP
23.8" 4K	VM24Q3 V7	3840*2160	1000nits	1000:1	178/178	-10/50C	eDP
24" FHD	VM24B1 V4	1920*1080	1000nits	5000:1	178/178	-20/70C	LVDS
24" FHD	VM24B1 V5	1920*1080	1500nits	5000:1	178/178	-20/70C	LVDS
24" FHD	VM24B1 V6	1920*1080	700nits	5000:1	178/178	-20/70C	LVDS
24" WUXGA	VM24B4 V2	1920*1200	1200nits	1000:1	178/178	-10/50C	LVDS
24" WUXGA	VM24B4 V3	1920*1200	600nits	1000:1	178/178	-10/50C	LVDS
24" WUXGA	VM24B4 V4	1920*1200	1200nits	1000:1	178/178	-10/50C	LVDS
24" WUXGA	VM24B4 V5	1920*1200	600nits	1000:1	178/178	-10/50C	LVDS
27" FHD	VM27B3 V1	1920*1080	1000nits	3000:1	178/178	-10/50C	LVDS
27" FHD	VM27B3 V2	1920*1080	500nits	3000:1	178/178	-10/50C	LVDS
27" FHD	VM27B3 V3	1920*1080	1500nits	3000:1	178/178	-10/50C	LVDS
27" 4K	VM27Q2 V0	3840*2160	300nits	1000:1	178/178	-10/50C	eDP
27" 4K	VM27Q2 V1	3840*2160	800nits	1000:1	178/178	-10/50C	eDP
27" 4K	VM27Q2 V0	3840*2160	300nits	1000:1	178/178	-10/50C	eDP
27" 4K	VM27Q2 V2	3840*2160	1500nits	1000:1	178/178	-10/50C	eDP
28"Bar-1/3FHD	VM28B2 V0	1920*360	700nits	4000:1	178/178	-20/60C	LVDS
28"Bar-1/3FHD	VM28B2 V7	1920*360	2500nits	4000:1	178/178	-20/60C	LVDS
28"Bar-1/3FHD	VM28B2 V8	1920*360	1200nits	4000:1	178/178	-20/60C	LVDS
28"Bar-1/3FHD	VM28B2 VA	1920*360	2500nits	1000:1	178/178	-20/60C	LVDS
28"Bar-1/3FHD	VM28B2 VB	1920*360	1200nits	1000:1	178/178	-20/60C	LVDS
28"Bar-1/3FHD	VM28B2 VC	1920*360	700nits	1000:1	178/178	-20/60C	LVDS
28"Bar-1/2FHD	VM28B6 VR	1920*540	700nits	4000:1	178/178	-20/60C	LVDS
28"Bar-1/2FHD	VM28B6 V4	1920*540	2500nits	4000:1	178/178	-20/60C	LVDS
28"Bar-1/2FHD	VM28B6 V5	1920*540	1200nits	4000:1	178/178	-20/60C	LVDS
29"Bar-2/3FHD	VM29B1 V0	1920*720	700nits	4000:1	178/178	-20/60C	LVDS
29"Bar-2/3FHD	VM29B1 V2	1920*720	2500nits	4000:1	178/178	-20/60C	LVDS
29"Bar-2/3FHD	VM29B1 V3	1920*720	1300nits	4000:1	178/178	-20/60C	LVDS
32" FHD	VM32B4 VB	1920*1080	2500nits	4000:1	178/178	-10/50C	LVDS
32" FHD	VM32B4 VC	1920*1080	1500nits	4000:1	178/178	-10/50C	LVDS
32" FHD	VM32B4 VD	1920*1080	1000nits	4000:1	178/178	-10/50C	LVDS
32" FHD	VM32B4 VE	1920*1080	700nits	4000:1	178/178	-10/50C	LVDS
32" FHD	VM32B6 V6	1920*1080	3000nits	1200:1	178/178	-20/60C	LVDS
32" FHD	VM32B6 V7	1920*1080	2000nits	1200:1	178/178	-20/60C	LVDS
32" FHD	VM32B6 V8	1920*1080	1000nits	1200:1	178/178	-20/60C	LVDS
32" FHD	VM32B6 V9	1920*1080	700nits	1200:1	178/178	-20/60C	LVDS
32" 4K	VM32Q2 V5	3840*2160	1000nits	3000:1	178/178	-10/50C	eDP
32" 4K	VM32Q2 V6	3840*2160	1500nits	3000:1	178/178	-10/50C	eDP
32" 4K	VM32Q2 V8	3840*2160	1000nits	1200:1	178/178	-10/50C	eDP
36.6" Bar	VM36B6 V0	1920*290	700nits	1200:1	178/178	-10/50C	LVDS
36.6" Bar	VM36B6 V1	1920*290	2500nits	1200:1	178/178	-10/50C	LVDS
36.6" Bar	VM36B6 V2	1920*290	1200nits	1200:1	178/178	-10/50C	LVDS
36.6" Bar	VM36B6 VN	1920*290	700nits	4000:1	178/178	-20/60C	LVDS
36.6" Bar	VM36B6 V3	1920*290	2500nits	4000:1	178/178	-20/60C	LVDS
36.6" Bar	VM36B6 V4	1920*290	1300nits	4000:1	178/178	-20/60C	LVDS
37"Bar-1/2FHD	VM37B1 V0	1920*540	700nits	4000:1	178/178	-20/60C	LVDS
37"Bar-1/2FHD	VM37B1 V1	1920*540	1300nits	4000:1	178/178	-20/60C	LVDS
37"Bar-1/2FHD	VM37B1 V2	1920*540	2500nits	4000:1	178/178	-20/60C	LVDS
40" 4K	VM40Q1 V2	3840*2160	1000nits	4000:1	178/178	-10/50C	VbyOne
43" FHD	VM43B1 V1	1920*1080	3000nits	1200:1	178/178	-20/60C	LVDS
43" FHD	VM43B1 V2	1920*1080	2000nits	1200:1	178/178	-20/60C	LVDS
43" FHD	VM43B1 V3	1920*1080	1000nits	1200:1	178/178	-20/60C	LVDS
43" FHD	VM43B1 V4	1920*1080	700nits	1200:1	178/178	-20/60C	LVDS
43" FHD	VM43B2 V6	1920*1080	2500nits	4000:1	178/178	-10/50C	LVDS
43" FHD	VM43B2 V7	1920*1080	1500nits	4000:1	178/178	-10/50C	LVDS
43" FHD	VM43B2 V8	1920*1080	1000nits	4000:1	178/178	-10/50C	LVDS
43" FHD	VM43B2 V9	1920*1080	700nits	4000:1	178/178	-10/50C	LVDS
43" 4K	VM43Q2 V5	3840*2160	1000nits	4000:1	178/178	-10/50C	VbyOne
43" 4K	VM43Q2 V6	3840*2160	2500nits	4000:1	178/178	-10/50C	VbyOne
43" 4K	VM43Q2 V7	3840*2160	1500nits	4000:1	178/178	-10/50C	VbyOne
43" 4K	VM43Q2 V8	3840*2160	700nits	4000:1	178/178	-10/50C	VbyOne
43" Bar	VM43BA V0	1920*480	700nits	4000:1	178/178	-10/50C	LVDS
43" Bar	VM43BA VA	1920*480	2500nits	4000:1	178/178	-10/50C	LVDS
43" Bar	VM43BA VB	1920*480	1300nits	4000:1	178/178	-10/50C	LVDS
46" FHD	VM46B2 V1	1920*1080	4000nits	4000:1	178/178	-10/50C	LVDS
46" FHD	VM46B2 V2	1920*1080	3000nits	4000:1	178/178	-10/50C	LVDS
46" FHD	VM46B2 V3	1920*1080	2000nits	4000:1	178/178	-10/50C	LVDS
46" FHD	VM46B2 V4	1920*1080	1000nits	4000:1	178/178	-10/50C	LVDS
48"Bar-1/3,4K	VM48Q1 V0	3840*720	1000nits	1000:1	178/178	-20/60C	VbyOne
48"Bar-1/3,4K	VM48Q1 V1	3840*720	2000nits	1000:1	178/178	-20/60C	VbyOne
48.5"Bar-1/3FHD	VM49BA V1	1920*360	2500nits	4000:1	178/178	-20/60C	LVDS
48.5"Bar-1/3FHD	VM49BA V2	1920*360	1000nits	4000:1	178/178	-20/60C	LVDS
48.5"Bar-1/3FHD	VM49BA V3	1920*360	1600nits	4000:1	178/178	-20/60C	LVDS
49" FHD	VM49B2 V1	1920*1080	1500nits	1300:1	178/178	-10/50C	LVDS
49" FHD	VM49B2 V2	1920*1080	3000nits	1300:1	178/178	-10/50C	LVDS
49" FHD	VM49B2 V3	1920*1080	4500nits	1300:1	178/178	-10/50C	LVDS
49" FHD	VM49B2 V4	1920*1080	1000nits	1300:1	178/178	-10/50C	LVDS
55" FHD	VM55B3 VA	1920*1080	1500nits	1300:1	178/178	-10/50C	LVDS
55" FHD	VM55B3 VB	1920*1080	3000nits	1300:1	178/178	-10/50C	LVDS
55" FHD	VM55B3 VC	1920*1080	4500nits	1300:1	178/178	-10/50C	LVDS
55" FHD	VM55B3 VD	1920*1080	1000nits	1300:1	178/178	-10/50C	LVDS
55" 4K	VM55Q3 V1	3840*2160	500nits	1300:1	178/178	-10/50C	VbyOne
55" 4K	VM55Q3 V2	3840*2160	1000nits	1300:1	178/178	-10/50C	VbyOne
55" 4K	VM55Q3 V3	3840*2160	1500nits	1300:1	178/178	-10/50C	VbyOne
55" 4K	VM55Q3 V4	3840*2160	2000nits	1300:1	178/178	-10/50C	VbyOne
49"Bar-1/2,4K	VM59S1 V1	3840*1080	1000nits	4000:1	178/178	-20/60C	VbyOne
49"Bar-1/2,4K	VM59S1 V2	3840*1080	2000nits	4000:1	178/178	-20/60C	VbyOne
65" 4K	VM65Q1 V3	3840*2160	500nits	1300:1	178/178	-10/50C	VbyOne
65" 4K	VM65Q1 V4	3840*2160	1000nits	1300:1	178/178	-10/50C	VbyOne
65" 4K	VM65Q1 V5	3840*2160	1500nits	1300:1	178/178	-10/50C	VbyOne
65" 4K	VM65Q1 V6	3840*2160	2000nits	1300:1	178/178	-10/50C	VbyOne
75" 4K	VM75Q2 V7	3840*2160	1000nits	1200:1	178/178	-10/50C	VbyOne
75" 4K	VM75Q2 V8	3840*2160	500nits	1200:1	178/178	-10/50C	VbyOne
75" 4K	VM75Q2 VA	3840*2160	500nits	1200:1	178/178	-10/50C	VbyOne
75" 4K	VM75Q2 VB	3840*2160	1000nits	1200:1	178/178	-10/50C	VbyOne
75" 4K	VM75Q2 VC	3840*2160	2000nits	1200:1	178/178	-10/50C	VbyOne
